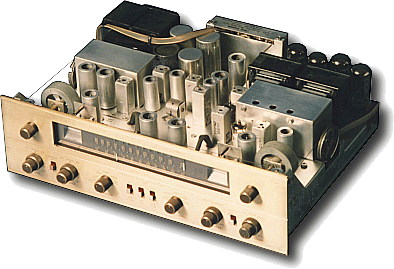

STEREOPHONIC FM-AM RECEIVER 20 Tubes: 2x 6FG6 (EM84), 3x 6AU6 (EF94), 1x 6AQ8 (ECC85), 1x DJ8 (ECC88), 1x 6BA6 (EF93), 1x 6AJ8 (ECH81), 1x 6DC8 (EBF89), 2x 7199, 4x 12AX7 (ECC83), 4x 7591. Music Power: 60 watts. Peak Power: 100 watts. Frequency Response: 19 to 32000Hz. Distortion: Less than 0.4% at full rated output. Channel Separation: Better than 50dB. Input Sensitivity: (for full rated output) Aux, Tuner, MPX: 230mV. Tape: 2.2mV Phono: 3.2mV. Phono Equalization: RIAA. - We are in the 50's and MPX-stereo is not yet the only method to receive stereo-broadcastings. The Fisher 800 is capable of producing stereo by different ways, using two separat-received sources provided by the radiostations. FM-FM Stereo: Left channel is received by FM-tuner, right channel received by external 2nd FM-tuner. FM-AM Stereo: Left channel received by FM-tuner, right channel received by AM-tuner. A multiplex adaptor is optional - such as the FISHER Model MPX-10 " is required to receive multiplex broadcasts - a new type of stereophonic transmission that broadcasts two channels over a single station" |
 |

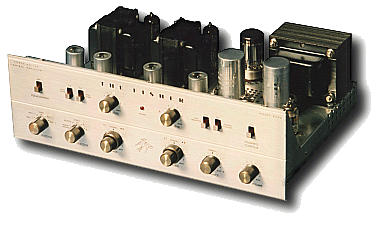

THE FISHER X100 (1962) STEREOPHONIC AMPLIFIER 11 Valves: 2x 7247, 4x 12AX7 (ECC83), 1x GZ34, 4x 7189 (~EL84). Music Power: 2x 16 watts. Peak Power: 2x 20 watts. Frequency Response: 20 to 20kHz (+-1dB). Distortion: >0.5% at 17 watts, 1kHz; >0.8% at 20 watts, 1kHz. Channel Separation: >50dB (1kHz). Input Sensitivity: Tape: 2.2mV/100k; Aux: 500mV/260k; Phono Magn: 3.6mV/42k, Phono Crist: 180mV/100k. Phono Equalization: RIAA. Output Impedance: 4, 8, 16 ohms. |
|

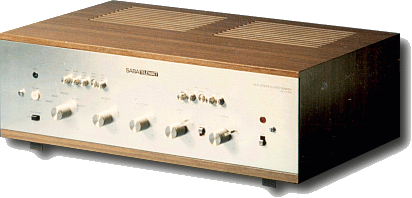

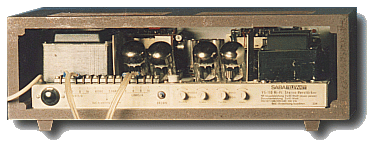

SABA TELEWATT VS 110 (1966) STEREOPHONIC AMPLIFIER 12 Valves: 6x ECC808 (6KX8), 2x ECC83 (12AX7), 4x EL503 (8278). Music Power: 2x 40 watts. Peak Power: 110 watts. Frequency Response: 25 to 30kHz (+0 -0.5dB); 15 to 90kHz (+0 -3dB); 20 to 30kHz (k=1%, 1 ch. 40W). Distortion: >0.2% (1kHz, 16 ohms, 1 ch. 40W); Intermodululation at 40W: 0.7% (50/3000Hz, 4:1). Channel Separation: >50dB (1kHz). Input Sensitivity: Radio, Radio2, Tape: 30mV max 210mV; Mic: 5mV max 250mV; Phono Magn: 3mV max 210mV; Phono Crist: 280mV max 5.5V. Phono Equalization: RIAA(USA), CCIR(Europe). Output Impedance: 4, 8, 16 ohms. |
